Advanced Cold Climate & Icing Simulation Capability
The system provides highly controlled environmental conditions for automotive testing:
• Minimum temperature: ≤ -30°C
• Cooling performance: 25°C → -30°C within ≤ 2 hours
• Stable low-temperature holding capability at -30°C for extended test cycles
• Total test cycle time: ≤ 3 hours (with 3-ton full vehicle load)

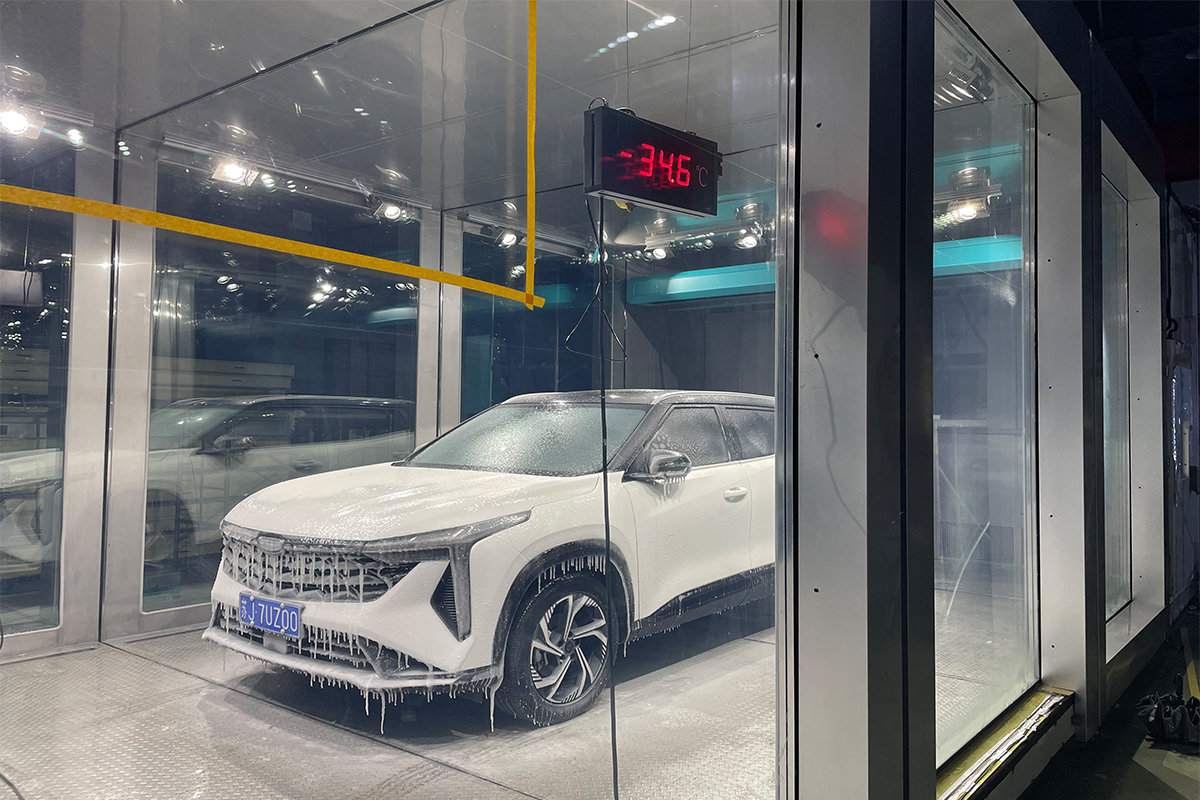

Icing Simulation System
The chamber is equipped with a controllable icing mechanism:
• Localized vehicle surface icing simulation
• Manual or automatic spray icing system
• Formation of thin ice layers and ice accumulation effects
• Icing initiation time: ≤ 1 hour
This enables realistic reproduction of northern winter driving conditions, including snow accumulation, freezing rain, and surface icing.
Full Vehicle Test Chamber Design
To support complete vehicle validation, the system is engineered with large-scale internal dimensions:
• Internal size: 8.3m (L) × 4.3m (W) × 3.225m (H)
• External size: 10m (L) × 4.8m (W) × 3.75m (H)
This allows full-size passenger vehicles, including EV platforms, to be tested under dynamic environmental stress conditions.
Engineering Value for EV & Automotive Industry
As electric vehicles expand into cold climate markets, manufacturers face increasing challenges such as:
• Battery performance degradation at low temperatures
• Sensor and ADAS system icing interference
• Door and sealing system freezing
• Material contraction and structural stress under extreme cold
The TestEQ icing low-temperature chamber provides a controlled validation environment to detect and eliminate these risks early in the development cycle.
Showcased at Auto China 2026 in Beijing
During the exhibition, the system attracted strong attention from OEMs and Tier-1 suppliers due to its ability to combine:
• Full-vehicle testing capability
• Controlled icing simulation
Its deployment at BYD further demonstrates the increasing demand for advanced environmental reliability testing solutions in China’s EV industry.
Technical Highlights
• Full vehicle -30°C environmental simulation
• Rapid thermal transition capability (≤2 hours)
• Controlled icing spray system (manual + automatic)
• Large-scale walk-in chamber design
• Designed for EV, ADAS, and automotive reliability validation
About TestEQ：
TestEQ focuses on providing customized environmental and reliability testing systems for the automotive, new energy battery, aerospace and high-end manufacturing industries, covering high and low temperature, rapid temperature change, damp heat, vibration and multi-environment coupling test solutions.
FAQ：
1. What is a vehicle icing low-temperature test chamber?
A vehicle icing low-temperature test chamber is an environmental system used to simulate extreme cold and icing conditions for full-vehicle reliability testing.
2. What temperature range does the chamber support?
The system supports temperatures down to -30°C, with rapid cooling from 25°C within approximately 2 hours.
3. Can the system simulate real ice formation on vehicles?
Yes. It supports controllable icing via manual or automatic spray systems to replicate real-world ice accumulation.
4. What is the size of the chamber?
The internal size is 8.3m × 4.3m × 3.225m, allowing full-vehicle testing.
5. What industries use this type of test chamber?
It is widely used in automotive, EV battery systems, ADAS validation, aerospace, and material testing industries.
Call To Action：
Looking for a reliable vehicle environmental testing solution? TestEQ designs and manufactures advanced low-temperature, rapid thermal cycling, and icing simulation chambers for full-vehicle validation. Contact our engineering team to discuss your testing requirements or request a customized solution tailored to your project needs. We support OEMs, Tier-1 suppliers, and research laboratories worldwide with proven reliability testing systems.
