What Is Rapid Thermal Cycling Testing?
Rapid thermal cycling testing evaluates how products perform under fast temperature transitions between extreme high and low conditions. It is widely used in electronics, automotive systems, EV batteries, and aerospace components to identify failure mechanisms such as:
• Solder joint fatigue
• Material expansion mismatch
• Seal cracking
• Electronic drift or failure
Unlike standard temperature cycling, rapid thermal cycling emphasizes controlled ramp rates (5°C/min to 25°C/min), making it a critical method for accelerated reliability testing.
International Test Standards for Thermal Cycling Chambers
Rapid thermal cycling chambers are designed to comply with multiple global standards rather than a single specification.
1. International Electrotechnical Commission Standards (IEC 60068 Series)
The IEC 60068-2-14 standard defines temperature change testing methods, including:
• Controlled ramp (gradual temperature change)
• Thermal shock (instant transition)
Key parameters:
• Temperature range: typically -70°C to +150°C
• Ramp rate: defined per test condition
• Cycle duration and dwell time
This is the most widely used standard for general electronic and industrial products.
2. JEDEC Standard (JESD22-A104)
The JEDEC JESD22-A104 standard is the benchmark for semiconductor reliability testing.
Typical conditions:
• Temperature range: -55°C to +125°C
• Cycles: 500 to 1000+
• Focus: solder fatigue and package integrity
This standard is critical for:
• IC components
• PCB assemblies
• BGA and chip packaging
3. United States Department of Defense Standards (MIL-STD)
Military standards such as:
• MIL-STD-810 (Method 503)
• MIL-STD-883
require:
• Extremely fast transition times
• High reliability under harsh environments
These are commonly applied in:
• Defense electronics
• Aerospace systems
Automotive Thermal Cycling Standards
4. International Organization for Standardization Standard (ISO 16750-4)
Defines environmental testing for road vehicles, including:
• Temperature cycling under electrical load
• Combined environmental stress
Widely used for:
• Automotive electronics
5. SAE International Standard (SAE J1455)
Focuses on real-world environmental simulation for heavy-duty vehicles.
OEM-Specific Standards
Major automotive manufacturers define stricter requirements:
• VW PV1200 / PV2005
• GM GMW3172
• Ford CETP
These often require:
• Faster ramp rates (≥15°C/min)
• More aggressive cycling conditions
Key Test Parameters That Impact Results
When selecting a rapid thermal cycling chamber, engineers focus on:
Ramp Rate (Critical Factor)
• 5°C/min – basic testing
• 10°C/min – industry standard
• 15–25°C/min – high-performance testing (EV & automotive)
Temperature Range
• -70°C to +150°C or +180°C
Dwell Time
• Typically 10–30 minutes to ensure thermal stability
Cycle Count
• 100 to 1000+ cycles depending on application
Why Equipment Capability Matters More Than the Standard
Standards define test conditions—but equipment performance determines test accuracy and repeatability.
Key chamber capabilities include:
• Precise linear temperature control
• Uniform temperature distribution
• Stable ramp rates under load
• Advanced control systems (PID / adaptive control)
For high-end applications such as EV batteries, chambers must maintain consistent ramp rates even with heavy DUT loads, which is a major differentiator in supplier selection.

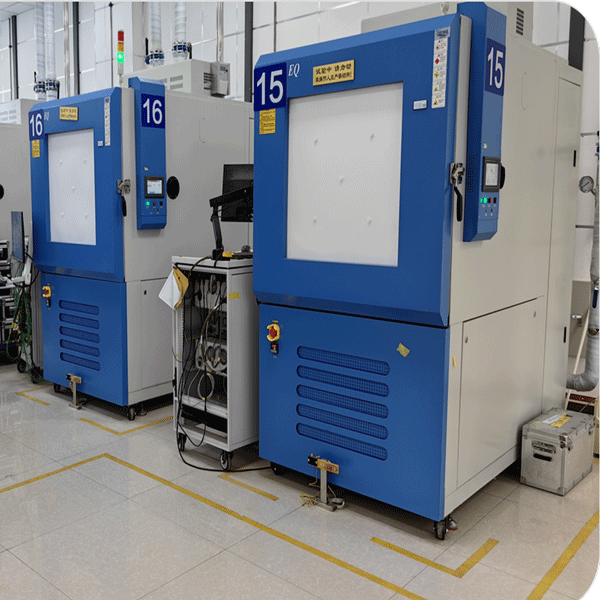

Choosing the Right Rapid Thermal Cycling Chamber
When evaluating suppliers, buyers should consider:
• Can the chamber achieve ≥15°C/min linear ramp rate?
• Is performance stable under full load?
• Does it meet IEC / JEDEC / automotive standards simultaneously?
• Is customization available for non-standard testing requirements?
FAQ:
1. What is the standard for rapid thermal cycling chamber testing?
Rapid thermal cycling chamber testing does not follow a single standard. Instead, it is based on a combination of international standards such as International Electrotechnical Commission IEC 60068-2-14, JEDEC
JESD22-A104, and International Organization for Standardization ISO 16750-4 for automotive applications. These standards define temperature ranges, ramp rates, and cycling conditions for reliability testing.
2. What is the difference between thermal cycling and rapid thermal cycling?
Thermal cycling typically uses slower temperature transitions (1–5°C/min), while rapid thermal cycling focuses on faster ramp rates, usually between 5–25°C/min. Rapid testing accelerates failure mechanisms such as material fatigue and solder joint cracking, making it more suitable for EV batteries and high-reliability electronics.
3. What ramp rate is required for rapid thermal cycling tests?
Most international standards recommend ramp rates from 5°C/min to 15°C/min. However, automotive and EV battery testing increasingly requires high-speed performance of 15–25°C/min to better simulate real-world conditions and shorten validation cycles.
4. Which industries require rapid thermal cycling testing?
Rapid thermal cycling is widely used in:
Electronics and semiconductors (JEDEC standards)
Automotive systems and EV batteries (ISO and OEM standards)
Aerospace and defense applications
These industries rely on fast temperature changes to validate long-term product reliability.
5. How do I choose the right rapid thermal cycling chamber?
When selecting a chamber, consider:
Ability to achieve stable ramp rates (≥15°C/min)
Temperature uniformity and control accuracy
Performance under full load conditions
Compliance with IEC, JEDEC, and automotive standards
Choosing a chamber with consistent high-speed performance ensures more accurate and repeatable test results.
Conclusion
Rapid thermal cycling chamber test standards are based on a combination of IEC, JEDEC, MIL, and automotive specifications, rather than a single unified standard.
For modern applications such as EV batteries and advanced electronics, the trend is moving toward faster temperature change rates and more complex test conditions, making high-performance chambers essential for accurate reliability validation.
