What Is Thermal Cycling Test?
A thermal cycling test repeatedly exposes a test specimen to programmed high and low temperature conditions.
During each cycle, the specimen experiences:
A transition from a low temperature to a high temperature.
A dwell period at the high temperature.
A transition back to the low temperature.
A dwell period at the low temperature.
Repetition for a specified number of cycles.
The repeated expansion and contraction of different materials creates thermo-mechanical stress.
This makes thermal cycling particularly useful for detecting reliability problems associated with different coefficients of thermal expansion (CTE), including solder fatigue, package cracking, delamination, connector degradation, seal failure, and material fatigue.
Thermal cycling should not be confused with thermal shock testing. Thermal cycling normally uses a controlled temperature transition, while thermal shock uses a much more abrupt transfer between hot and cold environments.
Why Is Thermal Cycling Testing Important?
Many products experience temperature changes throughout their service life.
Examples include:
• Automotive electronics exposed to engine and ambient temperature changes
• EV batteries operating between winter and summer conditions
• Semiconductor packages experiencing repeated thermal stress
• Outdoor electronics exposed to day-night temperature changes
• Aerospace electronics operating across changing environmental conditions
• Industrial equipment exposed to repeated heating and cooling
The resulting thermal expansion and contraction can gradually weaken interfaces between materials.
Thermal cycling testing helps engineers identify these potential failure mechanisms before products reach field deployment or mass production.
Typical failure mechanisms include:
• Solder joint fatigue
• PCB cracking
• Package cracking
• Delamination
• Wire bond degradation
• Connector failure
• Seal degradation
• Material deformation
• Intermittent electrical failure
Key Thermal Cycling Test Parameters
A reliable thermal cycling program normally defines several critical parameters.
Temperature Range
The temperature range establishes the thermal extremes experienced by the test specimen.
Common engineering profiles include:
−40°C to +125°C
−55°C to +125°C
−40°C to +150°C
−65°C to +150°C
The appropriate range depends on the product, application, and applicable standard.
For semiconductor reliability testing, engineers should refer to the relevant JEDEC procedure rather than selecting temperature limits only from general industry practice.
Temperature Transition Rate
The transition rate determines how quickly the chamber moves between the programmed temperature limits.
Common chamber capabilities include:
5°C/min
10°C/min
15°C/min
20°C/min
25°C/min
30°C/min
A higher rated ramp rate does not automatically mean a better thermal cycling system.
The required rate depends on the test standard, DUT thermal mass, chamber loading, test objective, cycle time, and required thermal stress.
For a detailed comparison of ramp rates, see:
5°C/min vs 10°C/min vs 20°C/min vs 30°C/min: How to Choose the Right Temperature Ramp Rate
Dwell Time
Dwell time is the period during which the DUT remains at the programmed high or low temperature.
The appropriate dwell time depends on:
Product thermal mass
Test standard
Chamber performance
Required thermal stabilization
Customer specification
A dwell period should be long enough to achieve the intended thermal condition throughout the test specimen when required by the test method.
Number of Cycles
The required cycle count varies significantly by application.
Qualification programs may involve hundreds or thousands of cycles.
The correct cycle count should be determined from the applicable product standard or customer qualification specification rather than using a universal number.
Temperature Uniformity and Stability
Temperature transition speed alone does not determine test quality.
The chamber should maintain stable and uniform temperature conditions across the usable workspace.
This is particularly important when:
Testing multiple specimens
Testing large DUTs
Running long-duration qualification programs
Comparing results between different laboratories
Thermal Cycling Test vs Thermal Shock Test
| Thermal Cycling | Thermal Shock | |
|---|---|---|
| Temperature Change | Controlled ramp | Extremely rapid |
| Purpose | Long-term fatigue | Severe stress |
| Application | Reliability validation | Failure screening |
| Equipment | Thermal Cycling Chamber | Thermal Shock Chamber |
How Does a Thermal Cycling Test Work?
A thermal cycling chamber controls the temperature according to a predefined test profile.
A basic thermal cycling profile may consist of:
Low Temperature → Low-Temperature Dwell → High Temperature → High-Temperature Dwell → Repeat
For example, an engineering test program may use:
• Low temperature: −40°C
• High temperature: +125°C
• Temperature transition: controlled ramp
• Dwell time: application dependent
• Number of cycles: application and standard dependent
These values are examples only. The actual test conditions should always be determined from the applicable standard, customer specification, product design, and intended failure mechanism.
The DUT thermal mass and fixture design also influence the actual temperature experienced by the test specimen. Therefore, chamber air temperature alone should not be treated as the complete test condition.
What Failures Can Thermal Cycling Detect?
Thermal cycling is especially useful for detecting failures caused by repeated thermo-mechanical stress.
Solder Joint Fatigue
Different materials expand and contract at different rates. Repeated cycling can eventually produce fatigue and cracking in solder joints.
PCB and Interconnect Damage
Repeated thermal expansion can stress PCB materials, vias, interconnects, and component attachments.
Semiconductor Package Cracking
Semiconductor packages contain multiple materials with different thermal expansion characteristics. Repeated cycling can increase mechanical stress at material interfaces.
Delamination
Thermal mismatch can contribute to separation between layers or interfaces within electronic packages and assemblies.
Connector and Contact Failure
Repeated thermal movement can cause mechanical stress, contact degradation, or intermittent electrical connections.
Seal and Material Degradation
Elastomers, polymers, adhesives, and sealing materials may lose mechanical integrity after repeated exposure to extreme temperatures.
Thermal Cycling Test Applications
Thermal cycling is used across multiple industries.
Semiconductor
Typical applications include:
• IC packages
• BGA devices
• Power semiconductors
• MEMS devices
• Semiconductor modules
• Package and interconnect reliability
JEDEC temperature cycling procedures are commonly referenced for semiconductor qualification.
Automotive Electronics
Thermal cycling can be applied to:
• ECUs
• Sensors
• Inverters
• Power electronics
• BMS systems
• Automotive control modules
Automotive qualification programs may reference standards such as AEC-Q100 and ISO 16750, depending on the component and test requirement.
EV Battery and Energy Systems
Applications may include:
• Battery modules
• Battery packs
• Battery connectors
• Busbars
• Power electronics
• Energy storage components
For battery systems, the required chamber configuration should also consider safety requirements, electrical feedthroughs, monitoring, and potential thermal runaway risks.
Aerospace and Defense
Thermal cycling can be used for:
• Avionics
• Flight control electronics
• Navigation systems
• Communication equipment
• Aerospace electronic assemblies
Military and aerospace programs may require environmental testing according to applicable MIL-STD or customer-specific procedures.
Consumer and Industrial Electronics
Typical DUTs include:
• PCBs
• Connectors
• Relays
• Electronic assemblies
• Sensors
• Industrial controllers
How to Select a Thermal Cycling Test Chamber
Selecting the chamber should begin with the test requirement rather than the equipment model.
Engineers should evaluate:
Temperature Range
Confirm that the chamber can achieve the required minimum and maximum temperatures under the intended load.
Ramp Rate
Verify the required transition rate under actual test conditions.
Do not evaluate ramp performance only from an unloaded chamber specification.
Chamber Volume
Select sufficient workspace for:
• DUT dimensions
• Fixtures
• Cable connections
• Air circulation
• Future testing requirements
Temperature Uniformity
Uniformity becomes particularly important when testing multiple specimens or large DUTs.
Control and Data Acquisition

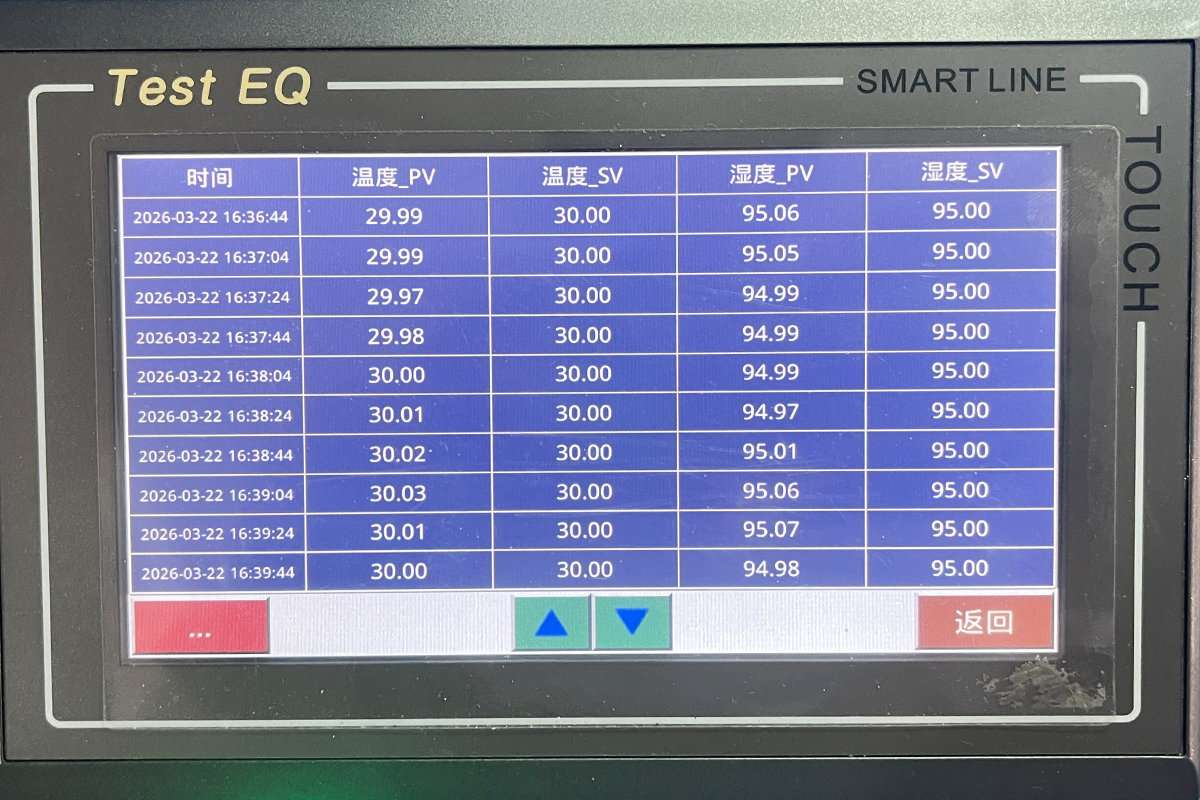

A suitable system should provide programmable test profiles, cycle counting, alarms, data recording, and monitoring appropriate to the application.
Customization
Complex applications may require:
• Cable ports
• Battery safety systems
• Electrical feedthroughs
• Data acquisition integration
• Custom chamber dimensions
• Special fixtures
• Remote monitoring
• Additional safety interlocks
For demanding reliability programs, these engineering requirements can be more important than the nominal temperature range alone.
Why Choose TestEQ Thermal Cycling Chambers?
TestEQ designs and manufactures thermal cycling and environmental testing systems for reliability laboratories and manufacturers.
Depending on application requirements, TestEQ thermal cycling systems can be configured with:
• Temperature ranges up to −70°C to +180°C
• Linear temperature transition rates up to 25°C/min or higher for selected configurations
• Custom chamber dimensions
• Programmable thermal cycling profiles
• PLC and PC-based control
• Battery safety integration
• Data acquisition and monitoring options
• Factory acceptance testing support
• International voltage and engineering configurations
TestEQ supports thermal cycling applications for semiconductor, automotive electronics, EV battery, aerospace, electronics, and industrial products.
The appropriate chamber configuration should be determined from the required temperature range, DUT size, thermal mass, ramp rate, cycle count, applicable standard, and safety requirements.
Thermal Cycling Test Procedure: Basic Workflow
A typical thermal cycling qualification program can be organized into the following steps:
Step 1: Define the Test Requirement
Identify:
• DUT type
• Product application
• Temperature limits
• Cycle count
• Transition requirements
• Dwell requirements
• Applicable standard
Step 2: Select the Test Chamber
Match chamber performance to the actual DUT and test profile.
Step 3: Prepare the DUT
Install specimens and fixtures according to the applicable test procedure.
Step 4: Program the Thermal Profile
Set:
• Low temperature
• High temperature
• Transition rate
• Dwell time
• Cycle count
• Alarm limits
Step 5: Run the Test
Monitor temperature performance, DUT condition, alarms, and test progress.
Step 6: Inspect the DUT
After the required number of cycles, perform the applicable electrical, mechanical, visual, X-ray, microscopic, or other failure analysis.
Step 7: Evaluate Reliability
Compare the test results with the acceptance criteria defined by the applicable standard or customer specification.
Common Thermal Cycling Test Standards
The applicable standard depends on the product and industry.
IEC 60068-2-14
IEC 60068-2-14 defines environmental testing procedures for temperature change.
It is widely referenced for evaluating the ability of products and components to withstand temperature transitions.
JESD22-A104
JESD22-A104 is widely used for semiconductor and electronic component temperature cycling qualification.
It defines temperature cycling procedures for evaluating reliability under repeated thermal stress.
MIL-STD-810
MIL-STD-810 contains environmental test methods used for military and aerospace equipment.
Temperature-related testing should be selected according to the specific equipment, environmental conditions, and applicable method.
ISO 16750
ISO 16750 addresses environmental conditions and testing for electrical and electronic equipment used in road vehicles.
It may be relevant to automotive component environmental validation depending on the specific test requirement.
AEC-Q100
AEC-Q100 defines qualification requirements for integrated circuits used in automotive applications.
Temperature cycling is one of the reliability stresses considered within automotive semiconductor qualification programs.
Frequently Asked Questions (FAQ)
1.What is a thermal cycling test?
A thermal cycling test repeatedly exposes a product or component to programmed high and low temperatures to evaluate reliability under repeated thermal stress.
2.What is the difference between thermal cycling and thermal shock?
Thermal cycling normally uses controlled temperature transitions, while thermal shock produces a much more abrupt temperature change, typically using separate hot and cold zones.
3.How many cycles are required for thermal cycling?
There is no universal cycle count. The required number depends on the product, qualification program, applicable standard, and customer specification.
4.What temperature range is used for thermal cycling?
Common engineering profiles include −40°C to +125°C and −55°C to +125°C, but the required range depends on the product and applicable test standard.
5.What ramp rate is required for thermal cycling?
The required ramp rate depends on the test method, DUT thermal mass, chamber loading, and reliability objective. Common chamber configurations range from approximately 5°C/min to 30°C/min.
6.Can thermal cycling predict product lifetime?
Thermal cycling can accelerate specific thermo-mechanical failure mechanisms and help identify reliability weaknesses. However, test results should not automatically be interpreted as a direct prediction of field lifetime unless an appropriate reliability model and correlation method are established.
7.Which industries use thermal cycling testing?
Major applications include semiconductor, automotive electronics, EV batteries, aerospace, defense, telecommunications, consumer electronics, and industrial equipment.
8.Which standards are commonly used for thermal cycling?
Common references include IEC 60068-2-14, JESD22-A104, MIL-STD-810, ISO 16750, and AEC-Q100, depending on the product and qualification requirement.
9.How do I choose the right thermal cycling chamber?
Start with the required temperature range, ramp rate, DUT size and thermal mass, cycle count, uniformity, control requirements, safety requirements, and applicable test standard.
Related Thermal Cycling Resources
Recommended Equipment
A controlled environmental chamber designed for repeated high- and low-temperature testing of electronics, automotive components, semiconductor devices, batteries, and industrial products.
Designed for applications requiring faster controlled temperature transitions and higher thermal cycling throughput.
Related Standards
A semiconductor-focused reference for temperature cycling qualification and reliability evaluation.
An international environmental testing standard covering temperature-change testing.
Related Resources
Learn the differences between thermal shock and thermal cycling, including applications, failure mechanisms, and chamber selection.
Detailed information about thermal cycling test procedures, test profile design, and practical test execution.
A practical guide to selecting the appropriate temperature transition rate for thermal cycling and rapid temperature change testing.
CTA
Request a Thermal Cycling Testing Solution：
Need a reliable thermal cycling chamber for automotive electronics, EV battery, semiconductor, or electronic component reliability testing?
TestEQ provides custom thermal cycling and environmental testing systemsbased on your required temperature range, ramp rate, chamber volume, DUT configuration, test standard, and safety requirements.
"Contact TestEQ today" for customized environmental testing solutions, application support, and competitive project quotations tailored to your reliability testing requirements.
