What Is a Rapid Rate Thermal Cycling Chamber?
A rapid rate thermal cycling chamber controls the temperature of a test space while changing between programmed temperature levels at a defined rate.
For example, a test may require a transition from -40°C to +85°C.
The theoretical transition time can be estimated from:
Temperature Difference ÷ Ramp Rate
For a 125°C temperature difference:
• 5°C/min: approximately 25 minutes
• 10°C/min: approximately 12.5 minutes
• 20°C/min: approximately 6.25 minutes
• 30°C/min: approximately 4.2 minutes
These values represent theoretical chamber-air transition times. Actual performance depends on refrigeration capacity, heating capacity, airflow, specimen mass, fixtures, chamber volume, and the specified measurement method.
How Does Rapid Thermal Cycling Work?
A rapid rate thermal cycling chamber combines several engineering systems to achieve fast and repeatable temperature transitions.
High-Capacity Refrigeration
The refrigeration system removes heat rapidly when the chamber changes toward low temperature.
For higher ramp rates, refrigeration capacity and heat-transfer performance become increasingly important.
High-Response Heating
Electric heaters or other heating systems provide rapid temperature increase during the heating phase.
The heating system must be coordinated with refrigeration and airflow control to minimize overshoot and maintain the programmed ramp profile.
Airflow Distribution
High-performance fans and optimized air ducts distribute conditioned air throughout the working space.
Airflow uniformity becomes especially important when the chamber contains a large or thermally conductive DUT.
Temperature Control

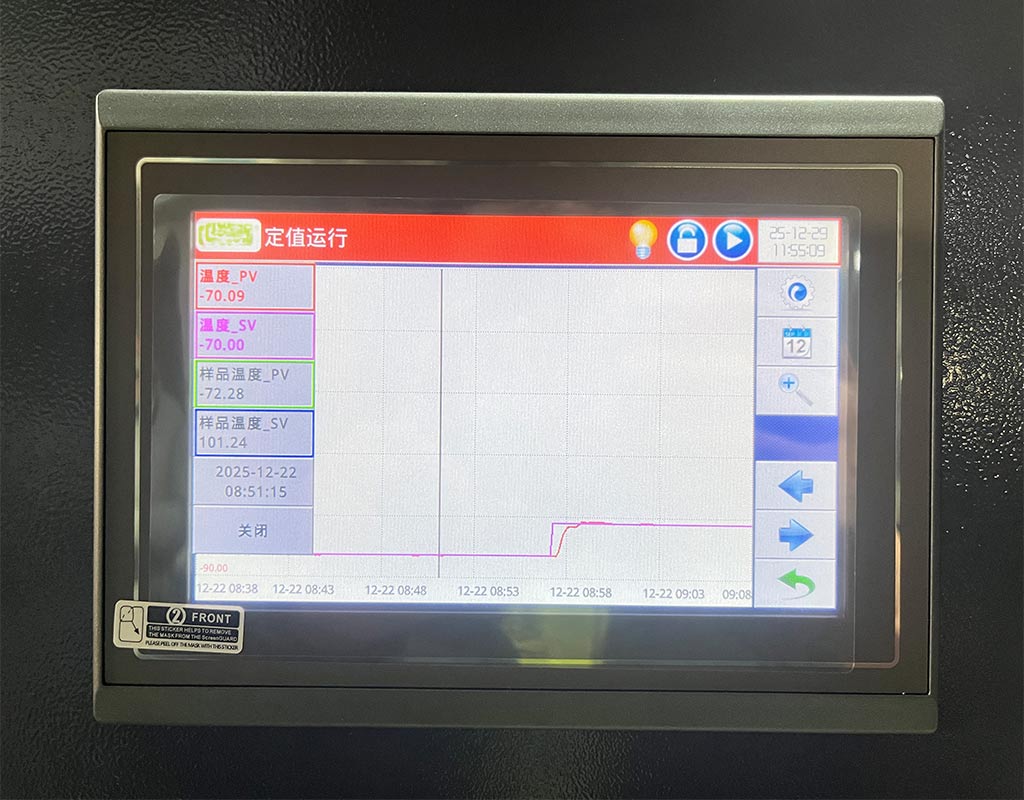

A programmable controller regulates heating, refrigeration, airflow, and other system functions to follow the required thermal profile.
For demanding applications, engineers should evaluate not only the maximum ramp rate but also the stability of the ramp and the temperature deviation during transitions.
5°C/min vs 10°C/min vs 20°C/min vs 30°C/min
| Temperature Ramp Rate | Testing Category | Typical Applications | Engineering Consideration |
|---|---|---|---|
| 5°C/min | Standard Thermal Cycling | General electronics, laboratory qualification | Suitable for many conventional thermal cycling tests |
| 10°C/min | Moderate Rapid Cycling | Automotive electronics, sensors, industrial electronics | Provides a balance between test speed and thermal system complexity |
| 20°C/min | Accelerated Thermal Cycling | Semiconductor devices, EV components, advanced electronics | Requires higher heating and refrigeration capacity |
| 25°C/min | High-Speed Thermal Cycling | Accelerated reliability testing, high-throughput applications | Loaded ramp-rate performance should be verified |
| 30°C/min | High-Performance Rapid Cycling | Specialized reliability testing and screening applications | Requires careful verification of DUT-loaded performance |
A higher ramp rate is not automatically better.
The correct specification depends on the applicable test standard, product thermal mass, number of cycles, test duration, and required reliability objective.
Why Loaded Ramp Rate Matters
One of the most important specifications when purchasing a rapid rate thermal cycling chamber is the loaded ramp rate.
A chamber may achieve a high ramp rate with an empty workspace. However, a DUT, metal fixture, battery assembly, PCB, heat sink, or semiconductor package introduces thermal mass.
That thermal mass absorbs or releases heat during the temperature transition and can reduce the actual temperature-change rate experienced by the product.
Therefore, procurement teams should ask suppliers:
Is the stated ramp rate linear or average?
Is it measured empty or under load?
What DUT or aluminum load was used?
What temperature range was tested?
What chamber volume was used?
Is the ramp rate guaranteed across the complete temperature range?
What temperature uniformity is maintained during the transition?
What overshoot occurs at the temperature endpoints?
A representative loaded performance test provides more useful information than a maximum unloaded specification.
Rapid Rate Thermal Cycling vs Thermal Shock
Rapid rate thermal cycling should not be confused with thermal shock testing.
A rapid rate thermal cycling chamber changes the temperature of the test space according to a controlled ramp profile.
A thermal shock chamber normally creates a much more abrupt environmental transition by transferring the DUT between hot and cold zones.
Rapid Rate Thermal Cycling
• Controlled temperature ramp
• Typical specification expressed in °C/min
• Programmable temperature profile
• Suitable for accelerated thermal cycling
• Useful for high-cycle reliability testing
Thermal Shock
• Very rapid environmental transition
• Usually uses separate hot and cold zones
• DUT is transferred between zones
• Designed to create severe thermal shock
• Commonly used when a thermal shock test method is specified
The correct system should therefore be selected from the applicable test standard and the required test profile rather than from ramp rate alone.
Rapid Rate Thermal Cycling Test Standards
Rapid thermal cycling applications may reference different standards depending on the product and industry.
IEC 60749-25
IEC 60749-25 specifies a temperature cycling test method for semiconductor devices, components, and board assemblies. The standard addresses mechanical stresses produced by alternating high and low temperature extremes and covers single-, dual-, and triple-chamber temperature cycling configurations.
IEC 60749-25 is particularly relevant to semiconductor reliability and solder interconnection testing.
IEC 60068-2-14
IEC 60068-2-14 addresses change-of-temperature environmental testing and is widely referenced for products exposed to temperature transitions.
The required temperature range, transition conditions, exposure time, number of cycles, and other test parameters should always be determined from the applicable product specification.
JEDEC Temperature Cycling Standards
Semiconductor reliability programs may also use JEDEC JESD22 test methods, including temperature cycling requirements for electronic components.
The exact test profile should be determined from the applicable JEDEC document and product qualification procedure.
Automotive Standards
Automotive electronics may reference standards such as ISO 16750 and AEC qualification requirements. The chamber specification should be matched to the actual temperature profile and DUT conditions rather than selected only by maximum ramp rate.
Applications of Rapid Rate Thermal Cycling
Semiconductor Reliability Testing
Rapid temperature cycling can be used to evaluate semiconductor packages, solder interconnections, assemblies, and other components exposed to repeated thermal expansion and contraction.
Different materials expand and contract at different rates. Repeated temperature transitions can therefore generate mechanical stress at interfaces and interconnections.
Automotive Electronics
Applications include:
ECU
Sensors
Power electronics
Automotive connectors
PCB assemblies
In-vehicle electronics
Thermal cycling can help identify weaknesses associated with solder joints, interfaces, encapsulation, and material compatibility.
EV and Battery Components
Rapid thermal testing can be applied to selected battery components, BMS electronics, connectors, sensors, and power electronics.
For battery testing, however, the chamber must be specified according to the DUT chemistry, energy level, safety requirements, temperature profile, and applicable battery test standard.
Aerospace and Defense Electronics
Aerospace and defense electronics can experience substantial temperature variations during storage, transportation, altitude changes, and operation.
Rapid thermal cycling can be incorporated into reliability and environmental qualification programs when required by the applicable specification.
How to Select the Right Rapid Rate Thermal Cycling Chamber
Engineers and procurement teams should evaluate the following parameters.
1. Temperature Range
Define the actual operating and test temperatures first.
For example:
• -40°C to +85°C
• -55°C to +125°C
• -70°C to +150°C
The chamber's total operating range and rapid-ramp operating range may not be identical.
2. Required Ramp Rate
Do not select the highest available rate automatically.
Determine whether the test requires:
• 5°C/min
• 10°C/min
• 15°C/min
• 20°C/min
• 25°C/min
• 30°C/min
The specification should state the temperature range and loading conditions under which the ramp rate must be achieved.
3. DUT Thermal Mass
Estimate the mass and heat capacity of the DUT and fixtures.
A high thermal mass may significantly affect the actual temperature response.
4. Chamber Volume
Select the working volume according to the DUT dimensions, fixture requirements, number of samples, and required airflow.
5. Temperature Uniformity
Rapid transitions should not create unacceptable temperature differences between locations inside the working zone.
6. Control and Data Recording
For qualification testing, the system should provide programmable profiles, temperature monitoring, data logging, alarms, and test-result records appropriate to the laboratory's requirements.
What Should Be Included in a Procurement Specification?
A professional RFQ for a rapid rate thermal cycling chamber should include more than:
“30°C/min temperature change rate.”
A better specification includes:
• Temperature operating range
• Rapid temperature-change range
• Heating rate
• Cooling rate
• Linear or average ramp definition
• DUT/load mass
• Temperature uniformity
• Temperature fluctuation
• Overshoot
• Recovery time
• Working volume
• Sample dimensions
• Fixture configuration
• Number of cycles
• Applicable test standards
• Data acquisition requirements
• Safety requirements
• Power supply
• Installation conditions
This approach allows suppliers to provide comparable technical proposals.
Why TestEQ for Rapid Rate Thermal Cycling?
TestEQ develops environmental simulation systems for rapid temperature-change and reliability testing applications.
TestEQ thermal cycling configurations can be specified with temperature change rates from 5°C/min to 30°C/min, depending on the chamber configuration, temperature range, load, and application requirements.
Engineering considerations include:
• Rapid linear temperature control
• Loaded and unloaded ramp-rate evaluation
• Temperature uniformity
• Airflow optimization
• Refrigeration and heating capacity
• Programmable thermal profiles
• Custom chamber dimensions
• Semiconductor reliability testing
• Automotive and EV component testing
• Aerospace and defense applications
For high-ramp-rate applications, TestEQ recommends defining the required temperature profile and DUT load before selecting the chamber configuration.
Frequently Asked Questions
1.Is a 30°C/min thermal cycling chamber better than a 5°C/min chamber?
Not necessarily. A higher ramp rate is useful when the test requires faster thermal transitions or higher testing throughput. If the applicable test standard requires a slower rate, a 30°C/min system may provide little practical benefit.
2.What is a rapid rate thermal cycling chamber?
It is an environmental chamber designed to repeatedly change temperature at a controlled high rate, commonly specified in °C/min, for accelerated thermal cycling and reliability testing.
3.What is the difference between rapid thermal cycling and thermal shock?
Rapid thermal cycling uses a controlled temperature ramp inside the chamber. Thermal shock typically transfers the DUT between hot and cold environments to produce a much more abrupt temperature transition.
4.Can a rapid rate chamber achieve 30°C/min under load?
The answer depends on the chamber design, temperature range, DUT mass, fixture configuration, and measurement conditions. A supplier should provide loaded performance data for the intended application.
5.Which standards are related to rapid temperature cycling?
Depending on the product, relevant standards can include IEC 60749-25, IEC 60068-2-14, JEDEC temperature cycling methods, ISO 16750 and customer-specific qualification specifications.
6.Does the DUT temperature change at the same rate as the chamber air?
Not necessarily. Thermal mass, material properties, fixture design, airflow, and heat-transfer characteristics can cause the DUT temperature to respond more slowly than the chamber air temperature.
7.What ramp rate should I choose?
Start with the applicable test standard and product specification. Then consider DUT thermal mass, cycle time, number of cycles, chamber volume, and required test throughput.
8.How many thermal cycles are typically required in a rapid rate thermal cycling test?
The required number of thermal cycles depends on the applicable test standard, product qualification plan, temperature range, ramp rate, dwell time, and reliability objective. There is no single cycle count that applies to every product.
For a compliant test, engineers should define the cycle count from the applicable standard or product specification rather than selecting a higher number simply to accelerate testing. The chamber should be capable of maintaining the required temperature profile consistently throughout the complete test duration.
