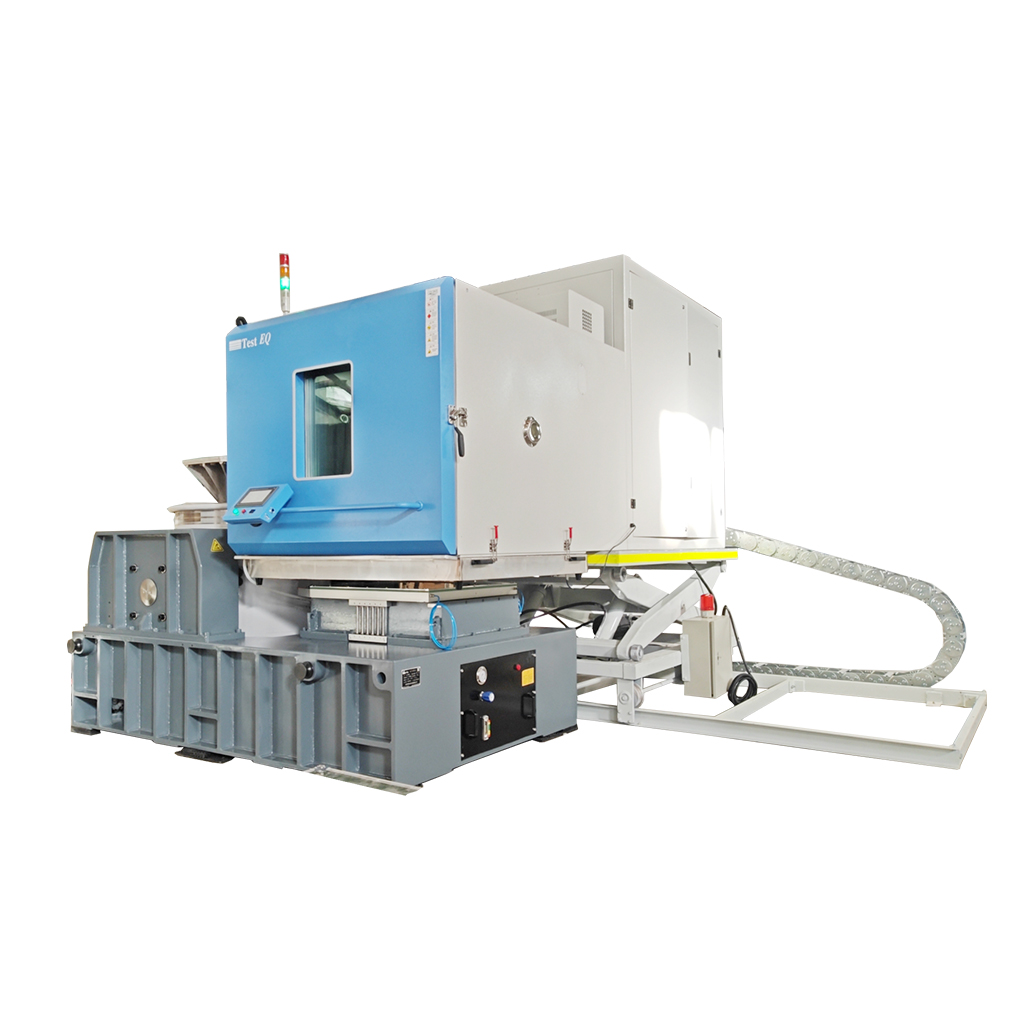

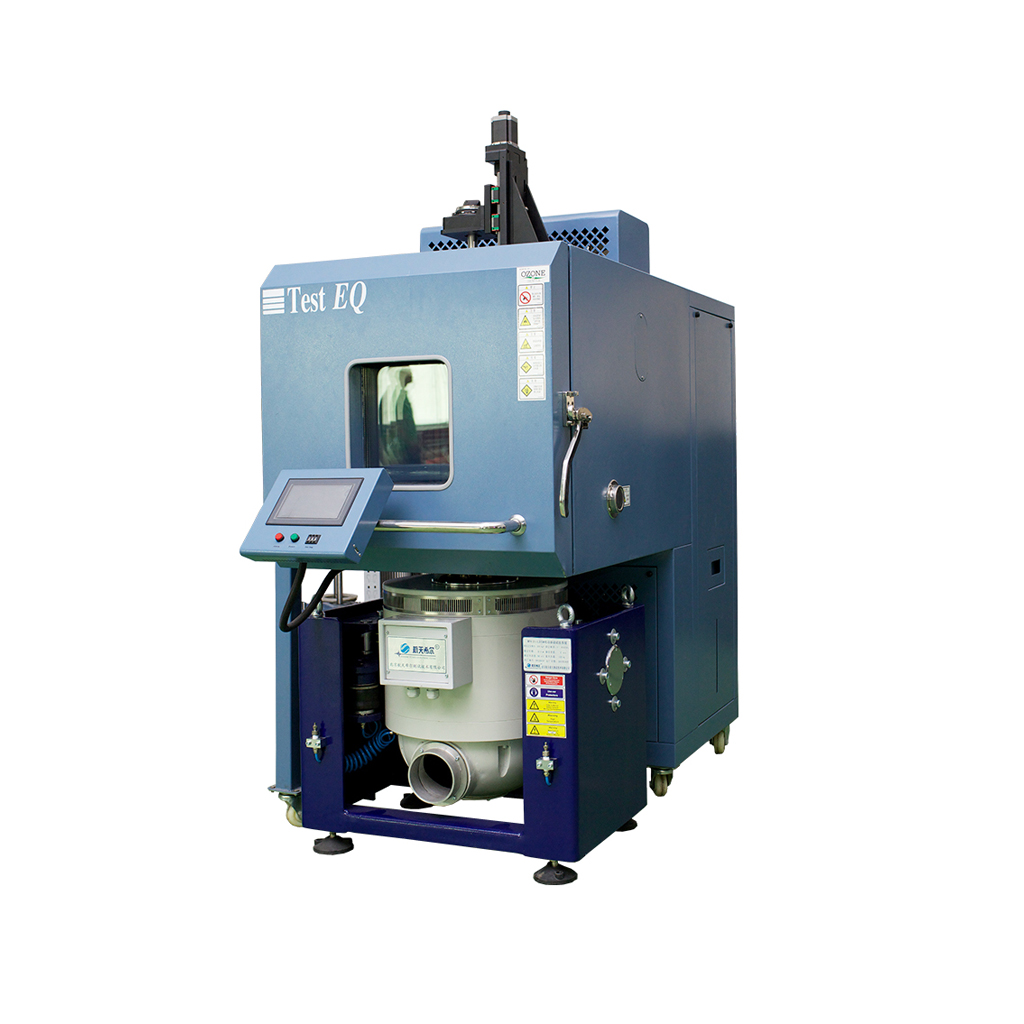

Three-Environmental Test System (Temperature, Humidity, Vibration)

Test EQ

Home > PRODUCTS > Three-Environmental Test System (Temperature, Humidity, Vibration)

All categories

Technical Specifications

Capacity：408 to 2400L

Temperature Range：-70℃ to +180℃

Temperature Fluctuation：≤ ± 0.5℃

Temperature Deviation：≤ ± 2.0℃

Temperature Uniformity：≤ 2.0℃

Humidity Range (%RH)※2：10%～98% RH

Humidity Uniformity：±1.0 % RH

Inquiry

Download catalogue

Download datasheet

Specifications
Product Features
Additional Options
Videos

Specifications

Serial number	Capacity ( m3 )		0.408			0.602
1	Model	Agree Chamber	EVTH408-40W5 EVTH408-55W5	EVTH408-40W10 EVTH408-55W10	EVTH408-40W15 EVTH408-55W15	EVTH600-40W5 EVTH600-55W5	EVTH600-40W10 EVTH600-55W10	EVTH600-40W15 EVTH600-55W15
3	Internal Dimension WxHxD (mm)		700x800x730			800x940x800
4	External Dimension WxHxD(mm)		900x1790x2640	900x1900x2813	900x1900x2813	1000x2150x2640	1000x1900x2890	900x1900x2890
5	Dimension of Vibration Shaker's Table		600x600			800x800
6	Performance Example (-70 to 180℃, Satisfy test standard IEC60068-3-5 )
7	Temperature Range		-70 to 180℃( 200℃ is optional)
8	Temperature Fluctuation		≤ ± 0.5℃
9	Temperature Deviation		≤ ± 2.0℃
10	Temperature Uniformity		≤ 2.0℃
11	Humidity Range (%RH)※2		10%～98% RH
12	Humidity Uniformity		±1.0 % RH
13	Relative Humidity Deviation		≤+2.0% ~ -3%RH (humidity>75%RH) ≤±5.0%RH (humidity≤75%RH)
14	Viewing window size		W330 × H360mm
15	Temperature Rising		7℃/min average	15℃/min average	15℃/min average	7℃/min average	15℃/min average	15℃/min average
16	Falling Speed Rate		6°C/min average	11°C/min average	15℃/min average	6°C/min average	11°C/min average	15℃/min average
17	Cooling System		Wind cooling or water cooling/single segment compressor (-40℃, double segment compressor -70℃)
18	Optional Accessories		Inner door with operation Hole , Recorder, Water Purifier, Dehumidifier
19	Vibration Test Equipment		Choose Vibration tester according to customer' s test condition, please take Vibration Test system' s catalog for reference
20	Structural Style		L-Elevator ,G -Gantry elevator , F-Fixture type
21	Rated output power		12KW	18KW	22KW	16KW	24KW	34KW
22			14KW	22KW	28KW	20KW	30KW	38KW
23	Power		AC380V,3 phase 5 lines,50/60HZ
24	※1 The vibration & temperature chambers model is EVT-series ※2 This indicator only applies to the humidity test chamber ※3 The configuration of shaking table of different depth and different height

Serial number	Capacity (m³ )		1.0			2.4
1	Model	Agree Chamber	EVTH1000-40W5 EVTH1000-55W5	EVTH1000-40W10 EVTH1000-55W10	EVTH1000-40W15 EVTH1000-55W15	EVTH2350-40W5 EVTH2350-55W5	EVTH2350-40W10 EVTH2350-55W10	EVTH2350-40W15 EVTH2350-55W15
3	Internal Dimension WxHxD (mm)		1000x1000x1000			1400x1200x1400
4	External Dimension WxHxD(mm)		1200x1900x3200	1200x1900x3470	1200x1900x3470	1600x2100x3720	1600x2100x3950	1600x2100x3950
5	Dimension of Vibration Shaker's Table(mm)		800x800			1000x1000
6	Performance Example (-70 to 180℃, Satisfy test standard IEC60068-3-5 )
7	Temperature Range		-70 to 180℃( 200℃ is optional)
8	Temperature Fluctuation		≤ ± 0.5℃
9	Temperature Deviation		≤ ± 2.0℃
10	Temperature Uniformity		≤ 2.0℃
11	Humidity Range (%RH)※2		10%～98% RH
12	Humidity Uniformity		±1.0 % RH
13	Relative Humidity Deviation		≤+2.0% ~ -3%RH (humidity>75%RH) ≤±5.0%RH (humidity≤75%RH)
14	Viewing window size		W380 × H520mm
15	Temperature Rising		7℃/min average	15℃/min average	15℃/min average	7℃/min average	15℃/min average	15℃/min average
16	Falling Speed Rate		6°C/min average	11°C/min average	15℃/min average	6°C/min average	11°C/min average	15℃/min average
17	Cooling System		Wind cooling or water cooling/single segment compressor (-40℃, double segment compressor -70℃)
18	Optional Accessories		Inner door with operation Hole , Recorder, Water Purifier, Dehumidifier
19	Vibration Test Equipment		Choose Vibration tester according to customer' s test condition, please take Vibration Test system' s catalog for reference
20	Structural Style		L-Elevator ,G -Gantry elevator , F-Fixture type
21	Rated output power		20KW	26KW	45KW	35KW	54KW	65KW
22			24KW	32KW	48KW	44KW	65KW	85KW
23	Power		AC380V,3 phase 5 lines,50/60HZ
24	※1 The vibration & temperature chambers model is EVT-series ※2 This indicator only applies to the humidity test chamber ※3 The configuration of shaking table of different depth and different height

Product Features

Features :

1.Structural Design: Monolithic construction with seamless TIG welding for durability and aesthetics. Lever-driven door lock mechanism.

2.Smart Control System: Features a Chinese-language color LCD touchscreen HMI + high-performance PLC, powered by TESTEQ's proprietary software for automated, intelligent, and user-friendly operation.

3.Energy Efficiency: Incorporates TESTEQ's patented "Static Balance" technology, reducing energy consumption by over 30% during low-temperature stabilization.

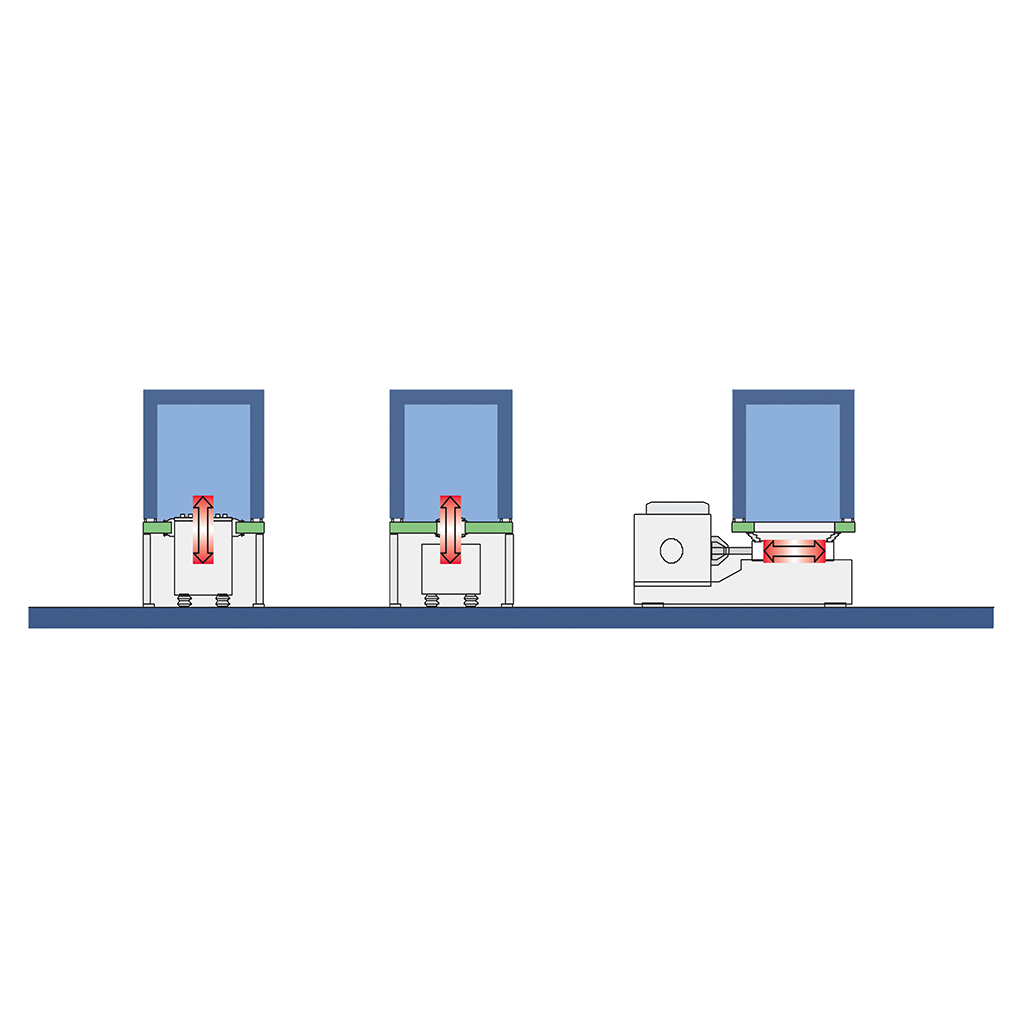

4.Vibration Integration:

•Elevator Mechanism: Wireless remote-controlled vertical/lateral movement for alignment with horizontal/vertical vibration platforms.

•Gantry Frame System: Worm gear-driven vertical adjustment and lateral positioning via wireless remote.

5.Advanced Sealing: Custom flexible connectors ensure airtight integration between temperature/humidity chambers and vibration platforms.

6.Climate Control:

•Dual operation modes: Constant operation & Programmable operation

•TESTEQ's patented humidification technology

•Eco-friendly refrigerants compliant with international environmental protocols

7.Premium Components: Internationally renowned compressors and critical refrigeration parts ensure long-term reliability.

8.Connectivity: RJ45 communication port + remote control system supporting Modbus/OPC protocols.

9.Surface Finish: Electrostatic powder coating in brand colors - "TESTEQ White" for main body, "TESTEQ Blue" for access doors.

Reference Standards:

•GB/5170.2-1996: Verification Methods for Environmental Testing Equipment Parameters (Temperature)

•GB2423.1-89: Basic Environmental Testing Procedures (Test A: Low Temperature)

•GB2423.2-89: Basic Environmental Testing Procedures (Test B: High Temperature)

•GB/T2423.3-93: Damp Heat Testing Methodology

•GJB150.3-86: Military Equipment Environmental Tests (High Temperature)

•GB/T 28046.4, ISO 16750-4, GMW 3172, VW80101, GB/T 10485

Note: Technical specifications subject to iterative upgrades. Consult TESTEQ's latest documentation for current configurations.

Additional Options

Widely used in aviation, aerospace, shipbuilding, defense, electrical engineering, electronics, automotive, motorcycle, telecommunications, and scientific research industries. Designed to assess the reliability of electrical/electronic products, instruments, and equipment during transportation, storage, and operation. This integrated system combines a temperature/humidity test chamber with vibration platforms to independently conduct temperature, humidity, vibration, and combined environmental tests.

Videos
