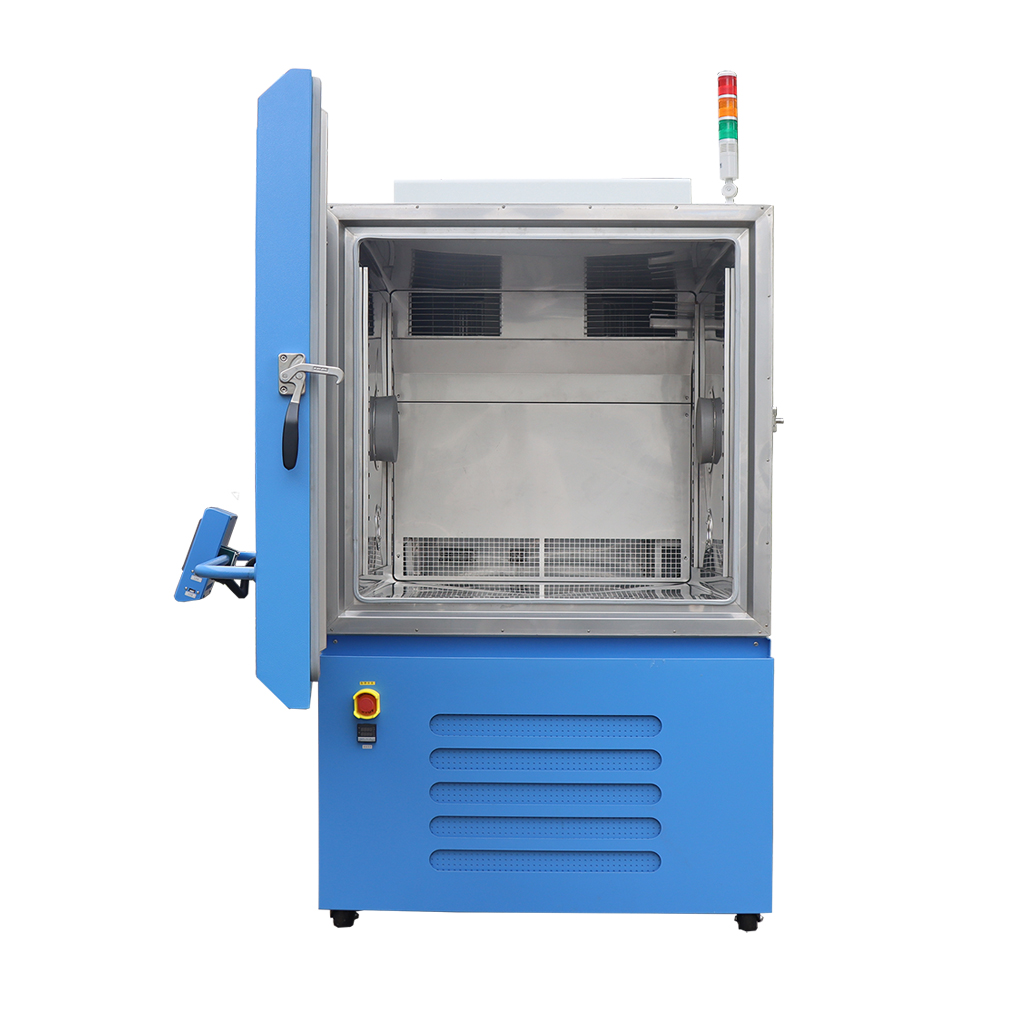

TESTEQ Rapid Temperature Change Test Chamber for Semiconductor
Technical Specifications

Capacity: 100 to 12,000L

Temperature Range: -70°C to +180°C

Temperature Change Rate: 5°C/min  to 25°C/min (optional)

Temperature Fluctuation: < ±0.5°C

Temperature Deviation: < ±2.0°C

Temperature Uniformity: < 2.0°C

Patent No.: CN201920954255.X

Inquiry

Inquiry

 Download catalogue

Download catalogue

 Download datasheet

Download datasheet
Specifications
Serial
number		Capacity ( m3 )0.2450.4081.0
1 ModelClimatic Test ChamberEATH225-40EATH225-70EATH408-40EATH408-70EATH1000-40EATH1000-70
2Internal Dimension
WxHxD （mm）		700x700x500700x800x7301000x1000x1000
3External Dimension
WxHxD （mm）		900x1680x1300900x1780x15001200x1980x1700
4Temperature Range -40℃ to +180℃ -70℃ to +180℃ -40℃ to +180℃ -70℃ to +180℃ -40℃ to +180℃ -70℃ to +180℃
5Temperature Change Range

-40°C to +85°C -Popuplar range ；

-45°C to +85°C（+125℃）;

-55°C to +85°C(+125℃）-Military level；

6Temperature Fluctuation≤ ± 0.5℃
7Temperature Deviation≤ ± 2.0℃
8Temperature Uniformity≤  2.0℃
9Airflow198L/Sec Cold Fusion260L/Sec Cold Fusion472L/Sec Cold Fusion
10

Heating & Cooling Rate  ：Speed with 5℃/min  to 25℃/minutes  for optional （ Hot sales: 5℃/min, 10℃/min,15℃/min,20℃/min）

Support:※3 Linear control  with loading  or without loading

                 ※3  Whole average with loading or without loading

11Humidity Range (%RH)※2 10%～98% RH
12Humidity Uniformity±1.0 % RH
13Relative Humidity Deviation ≤+2.0% ~ -3%RH (humidity>75%RH)
≤±5.0%RH (humidity≤75%RH)
14Window sizer
WxH(mm)		300x360380x520
15HeatingNoise Level
Heating/Cooling		494949494949
16Cooling656865686768
17Water Supply MethodPump Supply
18Water Tank Capacity ( L )2540
19Power  AC380V; 3 phase 5 lines ; 50/60HZ
22※1 The temperature chambers model is ET-Series

※2 This indicator only applies to the humidity test chamber

 ※3 This is for temperature Rate change should be clear with test sample


Product Features

Features:

1.Cold/Hot Balance Technology
 Ensures extreme temperature stability while reducing energy consumption by 30%.

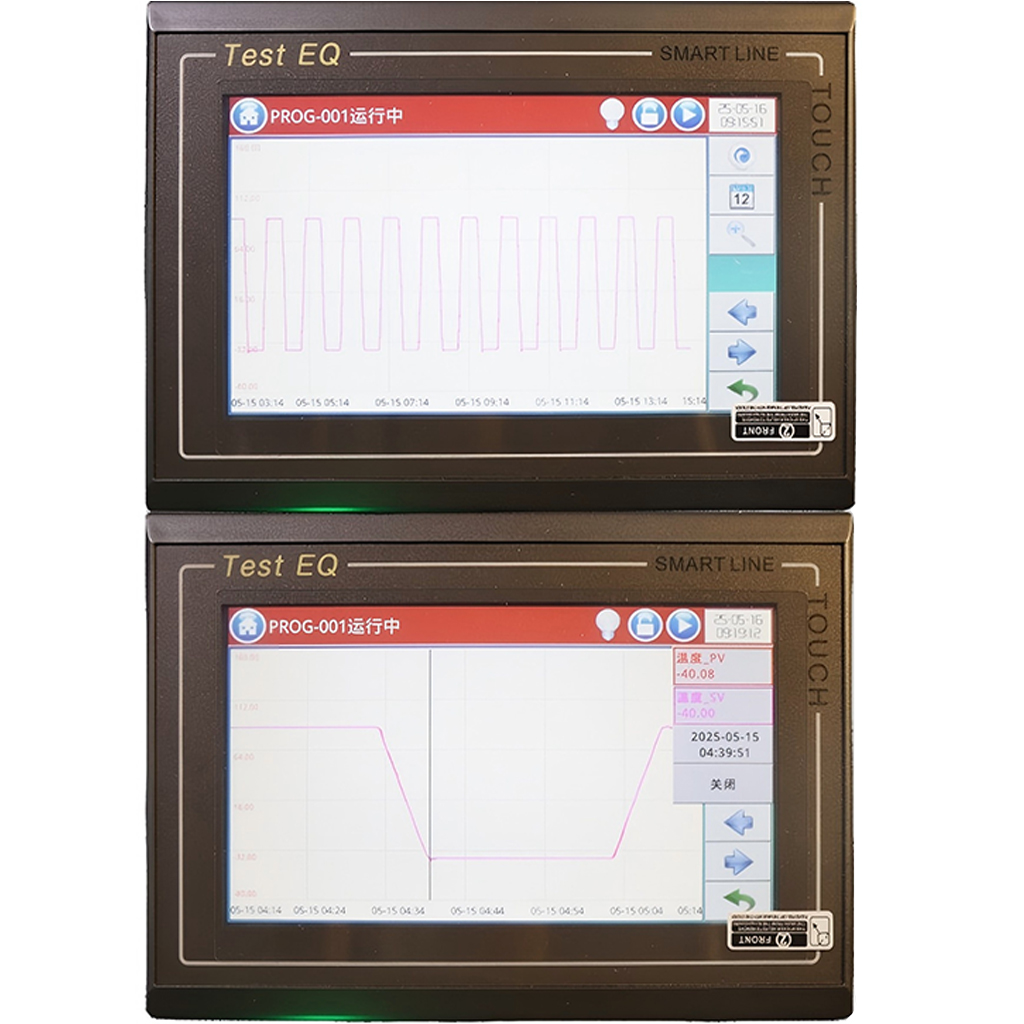

2.Smart Control System (v3.0)
Provides real-time monitoring and traceability of operational status, eliminating manual checks and significantly cutting labor and maintenance costs.

3.High-Speed Transition
Achieves rapid temperature shifts with mechanical refrigeration, ensuring reliability and precision for critical testing environments.

4.User-Centric Design
Customizable chamber sizes and intuitive controls meet diverse industry needs, from aerospace to electronics validation.



TESTEQ Rapid Temperature Change Test Chamber ― Standards Compliance & Testing Capabilities

Fully Compliant with Major International Test Standards
The TESTEQ Rapid Temperature Change Test Chamber is engineered to meet and exceed the stringent requirements of key industry standards, including:

  • JEDEC Standard JESD22-A104G
    (Temperature Cycling)
    ― Reliably performs high-speed temperature cycling tests for semiconductor and electronic components to evaluate their robustness against thermal fatigue and interconnect failures.

  • MIL-STD
    (Military Standard Environmental Test Methods)
    ― Supports a wide range of defense and aerospace environmental stress screening (ESS) tests, including rapid transition thermal cycling as required by MIL-STD-810 and MIL-STD-883.

  • RTCA/DO-160
    (Environmental Conditions and Test Procedures for Airborne Equipment)
    ― Ideal for validating avionics equipment under extreme temperature variations and rapid transition conditions per Sections 4.0 and 5.0.


Additional Options

  • 1.Product Reliability Testing
    Stress-testing components in automotive, semiconductor, and aerospace industries.

  • 2.Energy Efficiency
    Ideal for sustainable manufacturing practices with reduced power consumption.

  • 3.Quality Assurance
    Validates product durability under extreme thermal conditions, ensuring compliance with international standards.

Free to get the test plan and pull to "Ask For A Quick Quote"  TESTEQ sales team will reply you within today for your proposal.
