Opening:

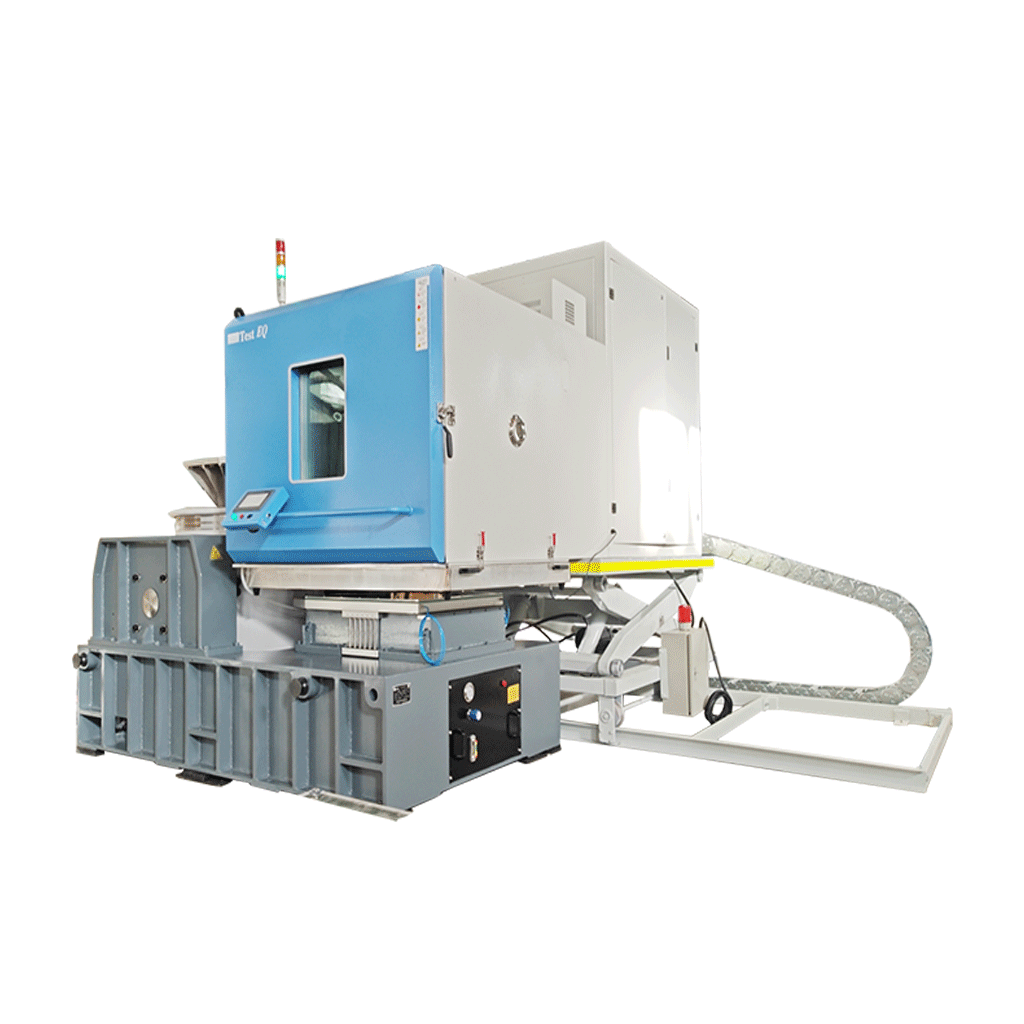

The Temperature, Humidity and Vibration Test Chamber is a 3‑in‑1 environmental simulation system designed to accurately reproduce complex real‑world conditions by integrating temperature cycling, humidity control, and mechanical vibration testing in one chamber. This integrated solution enables manufacturers to evaluate product durability, reliability, and failure modes under simultaneous environmental stresses.

What Is a Temperature Humidity Vibration Test Chamber?

A Temperature Humidity Vibration Test Chamber is a specialized reliability testing system used to evaluate how products perform when exposed to combined environmental and mechanical conditions. Unlike conventional environmental chambers that simulate only climatic factors, this system allows engineers to assess structural integrity, functional stability, and long-term performance under more realistic operating scenarios.

These chambers are commonly used for testing electronic components, automotive systems, battery modules, aerospace equipment, and communication devices where environmental resistance and mechanical durability are critical requirements.

By applying controlled test conditions, engineers can identify potential design weaknesses, material limitations, and component failures before products enter the market.

Why Use a Temperature Humidity Vibration Test Chamber?

Traditional reliability testing usually evaluates temperature, humidity, or vibration separately. However, real-world failures often occur when multiple stresses happen simultaneously.

A Temperature Humidity Vibration Test Chamber allows engineers to reproduce combined environmental conditions by applying:

Temperature cycling stress

Humidity exposure

Mechanical vibration loading

This combined approach helps identify:

Solder joint fatigue

Connector failures

Material expansion mismatch

Electronic component degradation

Structural weaknesses

Compared with single-factor testing, combined environmental testing provides a more realistic reliability evaluation before product deployment.

How to Select the Right Combined Environmental Test Chamber?

Temperature Humidity Vibration Test Chamber vs Thermal Shock Chamber: Which Testing Solution Do You Need?

Temperature Humidity Vibration Test Chamber and Thermal Shock Chamber are both used for environmental reliability testing, but they simulate different failure mechanisms.

The key difference is that a Temperature Humidity Vibration Test Chamber evaluates combined environmental stresses including temperature, humidity and mechanical vibration, while a Thermal Shock Chamber focuses on rapid temperature transition between extreme hot and cold conditions.

Choosing the right system depends on the product reliability requirements, industry standards and expected operating environment.

Comparison Table:

Why Choose This Combined Test Chamber

Wide temperature range from -70℃ to +180℃ with precise control.

Stable humidity control (10%–98% RH) with excellent uniformity.

Integrated vibration platform enabling comprehensive multi‑factor testing.

Programmable testing profiles with touchscreen HMI + PLC system.

Efficient energy‑saving design with patented balance and humidification technology.

Compatible with international test standards for aerospace, automotive and electronics

Working Principle:

This 3‑in‑1 environmental test chamber seamlessly integrates:

• Temperature Control System for accurate thermal cycling.

• Humidity Control System for wet/dry environmental replication.

• Integrated Vibration Platform (horizontal/vertical) for mechanical stress simulation.

The chamber synchronizes these subsystems to reproduce real‑world stresses and validate product durability, making it indispensable for advanced reliability testing.

Key Features:

1) Robust Structural Design

Monolithic TIG‑welded cabinet with high‑strength sealing for long‑term stability.

2) Advanced Control System

Programmable PLC & color touch HMI for automated test sequences.

3) Energy‑Efficient Climate Control

Patented balance and humidification technology reduces energy consumption.

4) Flexible Vibration Integration

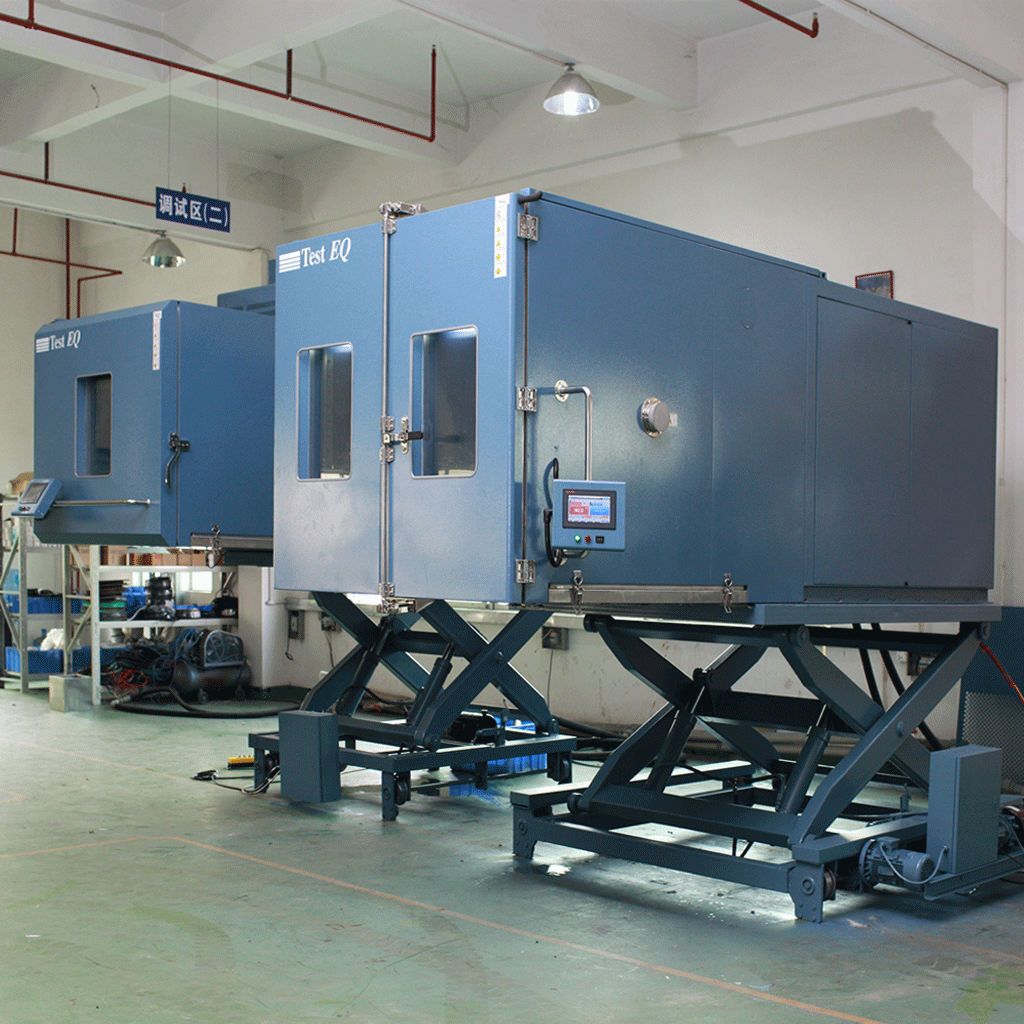

Supports elevator or gantry vibration frames with remote alignment.

5) Premium Components

International‑brand compressors and refrigeration parts for reliability.

6) Connectivity & Data Access

RJ45 / Modbus / OPC communication for remote monitoring and control.

How It Helps Your Business:

This combined environmental test chamber enables manufacturers to:

• Detect early‑life failures in electronics and assemblies.

• Validate designs for harsh operating environments.

• Improve product reliability prior to certification testing.

• Support multi‑factor test requirements in one system.

Integrating temperature, humidity, and vibration testing reduces the need for multiple pieces of equipment and shortens product development cycles.

Standards Compliance:

This chamber is designed to meet multiple industrial and military environmental standards, including but not limited to:

•GB/5170.2-1996: Verification Methods for Environmental Testing Equipment Parameters (Temperature)

•GB2423.1-89: Basic Environmental Testing Procedures (Test A: Low Temperature)

•GB2423.2-89: Basic Environmental Testing Procedures (Test B: High Temperature)

•GB/T2423.3-93: Damp Heat Testing Methodology

•GJB150.3-86: Military Equipment Environmental Tests (High Temperature)

•GB/T 28046.4, ISO 16750-4, GMW 3172, VW80101, GB/T 10485

•GB/T2423 / IEC 60068 series

•ISO / automotive reliability test protocols

Ensuring compatibility with global testing requirements.

FAQ:

Q1: What is a Temperature, Humidity & Vibration Test Chamber?
It is an integrated environmental test system that combines thermal, moisture, and mechanical vibration testing to simulate complex environmental conditions.

Q2: Which industries use this chamber?
Used in aerospace, automotive, electronics, defense, and scientific research for reliability verification.

Q3: What environmental ranges does it support?
Typical ranges include -70℃ to +180℃ and 10% to 98% relative humidity, with vibration interfaces for comprehensive testing.

Q4: Can tests be fully programmed?
Yes — the system supports fully programmable sequences with monitoring and data logging.

Q5: Does this chamber meet international standards?
It is designed to meet IEC 60068, GB/T2423 and other global environmental test standards.

Q6: What is the difference between a Temperature Humidity Vibration Test Chamber and a standard vibration test system?

A Temperature Humidity Vibration Test Chamber integrates climatic environmental simulation with mechanical vibration testing, while a standard vibration test system mainly focuses on mechanical stress. The combined chamber allows engineers to evaluate how temperature, humidity, and vibration interact and accelerate potential product failures under realistic operating conditions.

Q7: What products can be tested in a Temperature Humidity Vibration Test Chamber?

This chamber is commonly used for testing electronic components, automotive modules, battery systems, aerospace equipment, communication devices, and other high-reliability products. It helps verify structural durability, material compatibility, and long-term performance under combined environmental stresses.

Q8: How does a combined environmental test chamber improve reliability testing efficiency?

By integrating multiple environmental stresses into one system, engineers can reduce repeated handling between separate test platforms, improve test consistency, and identify hidden failure mechanisms that may not appear during single-condition testing.

Internal Linking Module

Recommended Equipment

• AGREE Vibration Test Chamber

Integrated temperature, humidity and vibration testing system compatible with electrodynamic shakers for aerospace, automotive and electronics applications.

• ESS Test Chamber

Designed for Environmental Stress Screening (ESS) to detect latent defects and improve product reliability before shipment.

Related Standards

•  IEC 60068 Environmental Testing Standard Explained

An overview of IEC 60068 requirements covering temperature, humidity, vibration and combined environmental tests.

• Three-Combination Test Chamber Standards Explained

Understand the major IEC, MIL-STD and other international standards used for three-combination environmental testing systems.

Technical Resources

• Temperature Humidity Test Chamber Guide

Learn the fundamentals of temperature and humidity simulation, chamber configurations and compliance requirements.

• What Is a Temperature Humidity Vibration Test Chamber?

Discover how combined temperature, humidity and vibration chambers work and why they are widely used in aerospace, automotive and electronics reliability testing.

Applications:

This combined chamber is ideal for reliability and environmental testing across industries:

• Aerospace components testing

• Automotive electronics and assemblies

• Telecom & communication equipment

• Military & defense product qualification

• Consumer electronics reliability verification

• Scientific R&D laboratories

Multi‑environment stress testing simulates transport, storage, and operation conditions, ensuring product compliance before market release.

Call To Action:

Need a Custom Temperature Humidity Vibration Test Solution?

TestEQ provides integrated environmental simulation systems for aerospace, automotive, semiconductor, and electronics reliability testing.

If you are selecting a combined temperature, humidity, and vibration chamber, our engineering team can help you configure the right system based on your test standard and application.

• Get technical consultation within 24 hours

• Request chamber specification & quotation

• OEM / ODM customization available

"[Request a Custom Solution or Quote Today]" Our engineering team will help you select the best configuration to meet your testing requirements.
