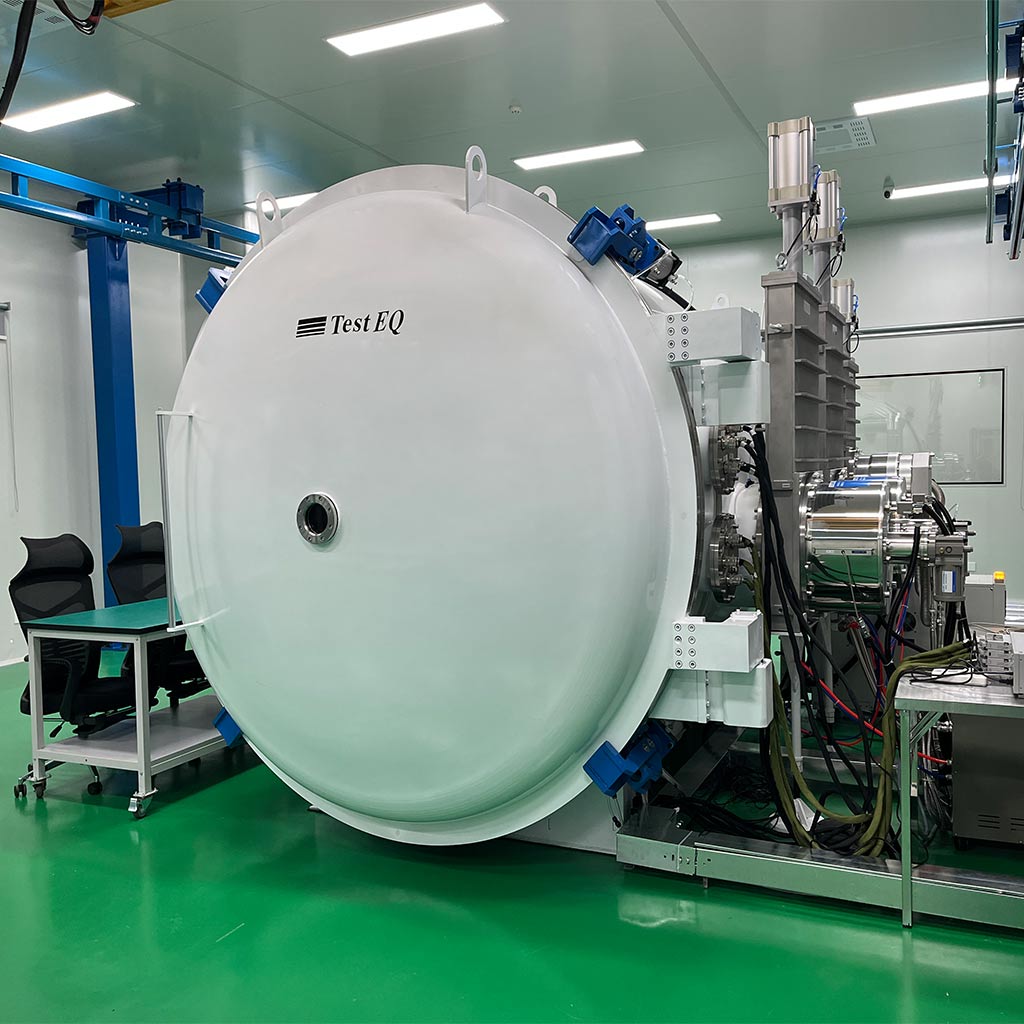

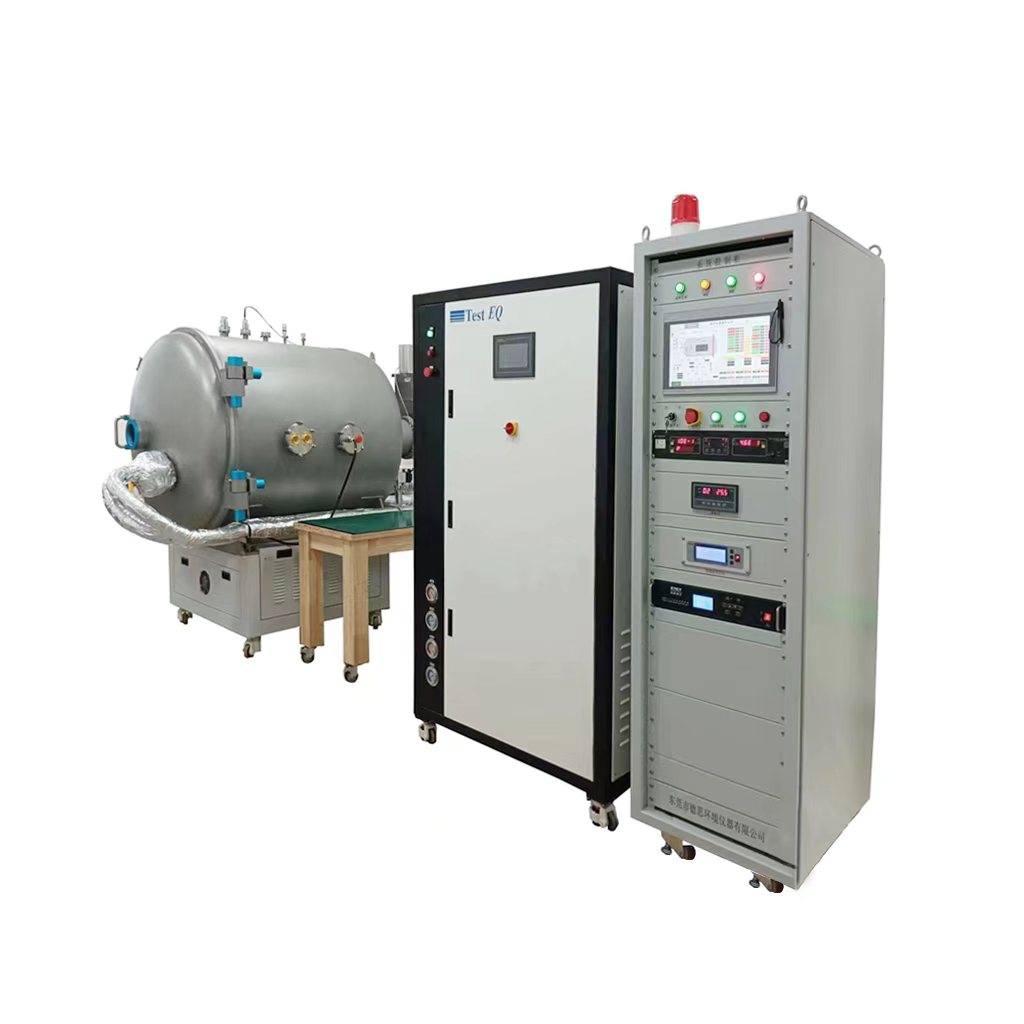

TVAC Chamber for Space Simulation & Custom Aerospace Testing

TestEQ TVAC Chambers are engineered environmental simulation systems for reproducing controlled vacuum and thermal conditions required by aerospace, satellite, spacecraft, optical, electronic and research applications.

A TVAC chamber integrates a vacuum vessel with thermal control hardware, vacuum pumping equipment, thermal shrouds or cold plates, heating and cooling systems, instrumentation and automated control.

TestEQ develops standard and custom TVAC chamber systems according to chamber volume, payload dimensions, required vacuum level, temperature range, thermal load, cooling technology, fixture configuration and customer qualification requirements.

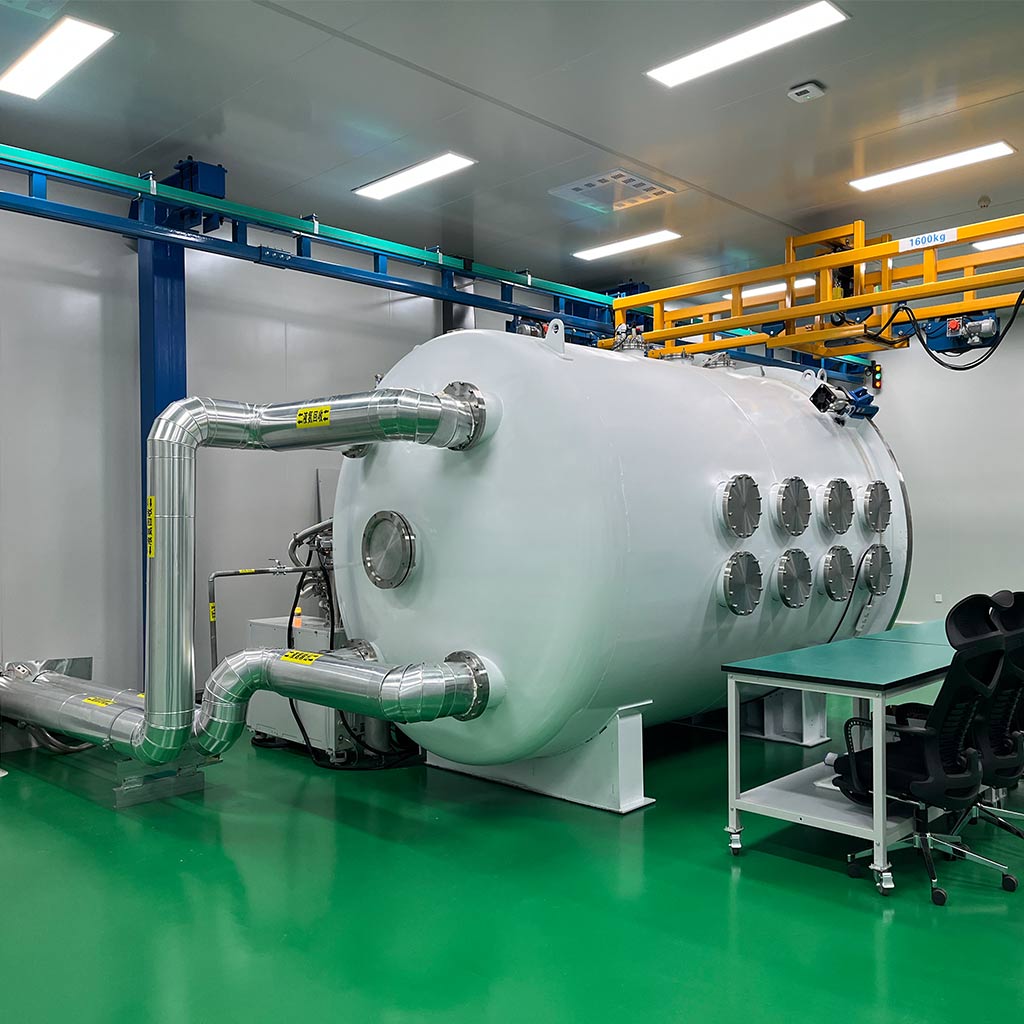

TVAC Chamber Engineering Overview

A TVAC chamber is more than a vacuum vessel. Reliable thermal-vacuum performance depends on the coordinated design of several subsystems.

A typical TestEQ TVAC system can include:

• Vacuum chamber vessel

• Vacuum pumping system

• Thermal shroud

• Cold plate

• Heating system

• Cooling system

• Temperature control system

• Vacuum measurement

• Electrical feedthroughs

• Payload fixtures

• Data acquisition

• Residual Gas Analyzer

• Automated control

• Optional solar simulation

The configuration is selected according to the application rather than using a single fixed architecture for every project.

What Is a TVAC Chamber?

A TVAC chamber (Thermal Vacuum Chamber) is an environmental test system designed to simulate the extreme thermal and vacuum conditions experienced by spacecraft, satellites, aerospace components, and other high-reliability products during operation in space environments.

By controlling temperature, pressure, and vacuum levels inside the chamber, a TVAC system reproduces the conditions of space, including thermal cycling, vacuum exposure, and outgassing environments. It allows engineers to verify product performance, reliability, and durability before deployment.

TVAC chambers are widely used for spacecraft qualification testing, satellite components, aerospace electronics, optical systems, and advanced materials that require validation under extreme space-like conditions.

Custom TVAC Chamber Design

TestEQ designs custom TVAC chambers for applications where standard environmental chambers cannot provide the required combination of vacuum, thermal performance, chamber dimensions and payload integration.

Customization can include:

Chamber Dimensions

The chamber diameter, length, height and internal volume can be engineered around the payload.

Vacuum Architecture

The pumping system can be selected according to:

• Chamber volume

• Required ultimate vacuum

• Pump-down requirements

• Test duration

• Payload outgassing

• Cleanliness requirements

Thermal Shroud

Thermal shrouds provide controlled radiative thermal conditions around the payload.

Depending on the application, the shroud can be designed for different thermal zones and temperature requirements.

Cold Plate

A cold plate can provide direct thermal control for selected payloads and is particularly useful for applications requiring controlled conductive heat transfer.

Cooling System

Available cooling approaches can include:

• Mechanical refrigeration

• Gaseous nitrogen

• Liquid nitrogen

• Combined cooling configurations

The appropriate technology depends on temperature range, thermal load, chamber volume and operating requirements.

Payload Fixture

Custom fixtures can accommodate:

• Satellite subsystems

• Aerospace electronics

• Optical instruments

• Sensors

• Materials

• Batteries

• Mechanical assemblies

Fixture design can include mounting interfaces, cable routing, thermal interfaces and electrical connections.

TVAC Chamber Configuration Options

TVAC Vacuum System

The vacuum system is one of the most important parts of a TVAC chamber.

The pumping architecture can be configured according to the required vacuum level, chamber volume and payload characteristics.

Possible vacuum technologies include:

Mechanical Vacuum Pump

Used as the initial pumping stage and for applications where moderate vacuum levels are sufficient.

Roots Pump

Used to increase pumping speed and improve pump-down performance for larger chamber volumes.

Molecular Pump

Suitable for applications requiring high-vacuum performance.

Cryogenic Pumping

Can be considered for applications requiring high vacuum and specific contamination-control characteristics.

The final pumping configuration should be determined according to the required pressure, chamber volume, payload outgassing and test procedure.

TVAC Thermal Control System

Thermal control determines how accurately the chamber can reproduce the required hot and cold conditions.

TestEQ TVAC configurations can integrate:

• Thermal shrouds

• Multi-zone thermal control

• Cold plates

• Electrical heating

• Mechanical refrigeration

• GN₂ cooling

• LN₂ cooling

The thermal architecture can be designed according to the payload's heat dissipation, required temperature range and thermal balance requirements.

TVAC Chamber for Space Simulation

TVAC chambers are widely used to simulate important environmental conditions encountered by space hardware.

Applications include:

Satellite Subsystems

Testing communication systems, avionics, power electronics, sensors and other satellite subsystems.

Spacecraft Components

Evaluating structural, electrical and thermal performance of spacecraft hardware.

Aerospace Electronics

Testing electronic assemblies under combined vacuum and extreme thermal conditions.

Optical Payloads

Evaluating imaging systems, optical sensors and precision instruments where thermal stability and vacuum compatibility are important.

Space Materials

Evaluating material behavior and vacuum compatibility.

Research and Development

Supporting aerospace laboratories, universities, government research organizations and industrial R&D programs.

TVAC Chamber for Thermal Balance Testing

Thermal balance testing is used to verify spacecraft thermal models and evaluate the thermal behavior of hardware under simulated space conditions.

A suitable TVAC configuration can incorporate:

• Multi-zone thermal shroud

• Temperature sensors

• Cold plates

• Controlled heating

• Vacuum monitoring

• Data acquisition

• Automated thermal profiles

The number of thermal zones, sensor channels and control parameters can be customized according to the spacecraft or payload architecture.

TVAC Chamber Instrumentation

A complete TVAC system may require more than temperature and pressure control.

Optional instrumentation includes:

• Temperature sensors

• Vacuum gauges

• Pressure monitoring

• Electrical feedthroughs

• Data acquisition

• RGA

• Payload monitoring

• Automated alarms

• Remote monitoring

For complex aerospace programs, instrumentation should be defined together with the test article and qualification plan.

How to Select a Thermal Vacuum Chamber for Aerospace Testing

Selecting a thermal vacuum chamber requires engineers to evaluate several critical parameters, including vacuum level, temperature range, thermal uniformity, payload size, thermal cycling capability and test standards.

The key factors include:

1. Vacuum Performance

Aerospace thermal vacuum testing usually requires high vacuum environments to simulate orbital conditions. Engineers should evaluate ultimate pressure, leakage rate and pressure stability.

2. Temperature Capability

The chamber should reproduce extreme hot and cold conditions experienced during space missions, including thermal cycling between hot soak and cold soak periods.

3. Thermal Control Accuracy

Stable thermal control is essential for spacecraft components, satellite payloads and aerospace electronics qualification.

4. Payload Configuration

The chamber size, thermal shroud design and fixture integration should match the tested hardware, from electronic components to satellite subsystems.

How a TVAC Chamber Works

A TVAC chamber combines:

Vacuum Generation System

Creates low-pressure / high-vacuum environments using multi-stage pumping systems.

Thermal Shroud / Cold Plate

Controls radiative heating and cooling of the test article.

Thermal Cycling Control

Simulates orbital hot/cold transitions through programmable temperature profiles.

Unlike standard environmental chambers, heat transfer in vacuum occurs primarily through radiation and conduction rather than convection, making thermal-vacuum testing fundamentally different from ambient thermal testing.

Why TVAC Testing Is Critical

TVAC testing helps engineers identify failure modes that may not appear in ambient testing, including:

• Vacuum-induced overheating

• Material outgassing contamination

• Seal leakage under vacuum

• Thermal distortion of structures

• Cold-soak / hot-soak electronic drift

• Radiative heat imbalance in vacuum

Industry practitioners note that hardware can pass ambient thermal tests yet fail TVAC due to vacuum-specific thermal behavior and outgassing effects.

TVAC Chamber vs Standard Environmental Chamber:

TVAC Chamber Applications

TestEQ TVAC chambers can be configured for:

• Aerospace qualification

• Satellite testing

• Spacecraft subsystem testing

• Thermal balance testing

• Vacuum compatibility testing

• Optical instrument testing

• Aerospace electronics

• Sensor testing

• Battery and power-system evaluation

• Material research

• University research

• Government laboratory testing

CTA:

Request a Custom TVAC Chamber

Looking for a TVAC chamber manufacturer for satellite, spacecraft, aerospace electronics or research applications?

TestEQ can engineer a complete thermal vacuum chamber according to your project requirements.

Please provide:

• Payload dimensions

• Payload weight

• Required vacuum level

• Temperature range

• Thermal load

• Thermal cycling requirements

• Thermal balance requirements

• Applicable standard

• Required instrumentation

Our engineering team can recommend a suitable TVAC chamber configuration, vacuum system, thermal-control architecture and customized payload solution.
